Welding and assembly are two critical processes in modern manufacturing, especially in industries that require strong, durable, and long-lasting metal connections. These processes are foundational to the creation of complex machinery, vehicles, structures, and a wide variety of other metal-based products. In this blog, we will explore the importance of welding and assembly, the different techniques used, their applications, and how businesses can benefit from leveraging these methods to ensure the highest quality and precision in their manufacturing operations.

The Role of Welding in Metal Connections

Welding is the process of joining two or more metal pieces by melting the workpieces and adding a filler material to create a strong, permanent bond. The method can be applied to a wide range of metals, including steel, aluminum, and titanium, and can be used in both small-scale and industrial manufacturing.

Types of Welding Techniques

Welding is an essential process in the manufacturing industry, enabling the joining of two or more pieces of metal to create a strong, permanent bond. Depending on the material, application, and desired outcome, different welding techniques are employed. Understanding the various welding techniques is key to selecting the right one for specific projects. Here are some of the most commonly used welding methods:

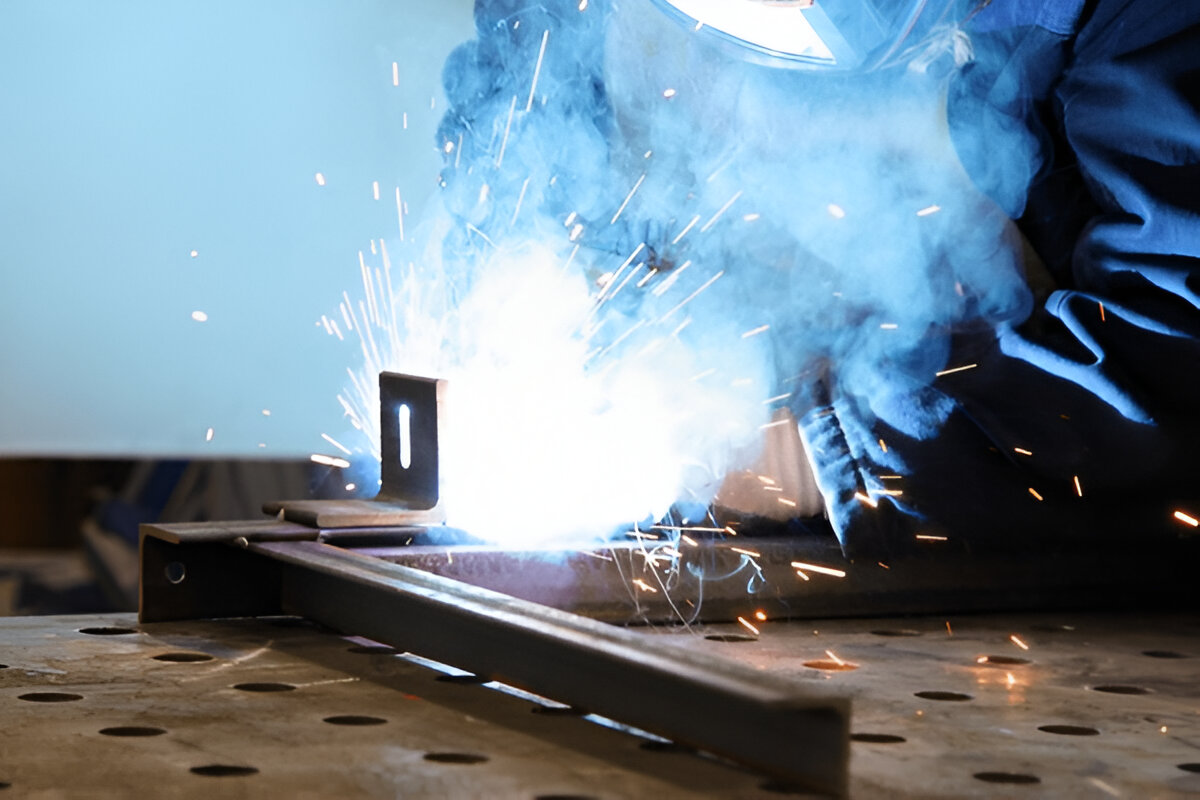

1. MIG Welding (Metal Inert Gas)

MIG welding, also known as Gas Metal Arc Welding (GMAW), is one of the most popular and versatile welding techniques. It involves feeding a continuous wire electrode through a welding gun while shielding the weld pool with an inert gas, typically argon or a mixture of argon and carbon dioxide. MIG welding is fast, easy to learn, and ideal for both beginners and professional welders.

• Applications: MIG welding is commonly used in the automotive, construction, and general manufacturing industries. It works well with a variety of metals such as aluminum, steel, and stainless steel.
• Advantages: MIG welding provides a smooth, clean weld and is highly efficient for production work, especially for thin materials. It offers excellent control over the weld bead and produces minimal spatter.
• Limitations: MIG welding can be less effective outdoors due to wind disrupting the shielding gas, making it more suited for indoor environments.

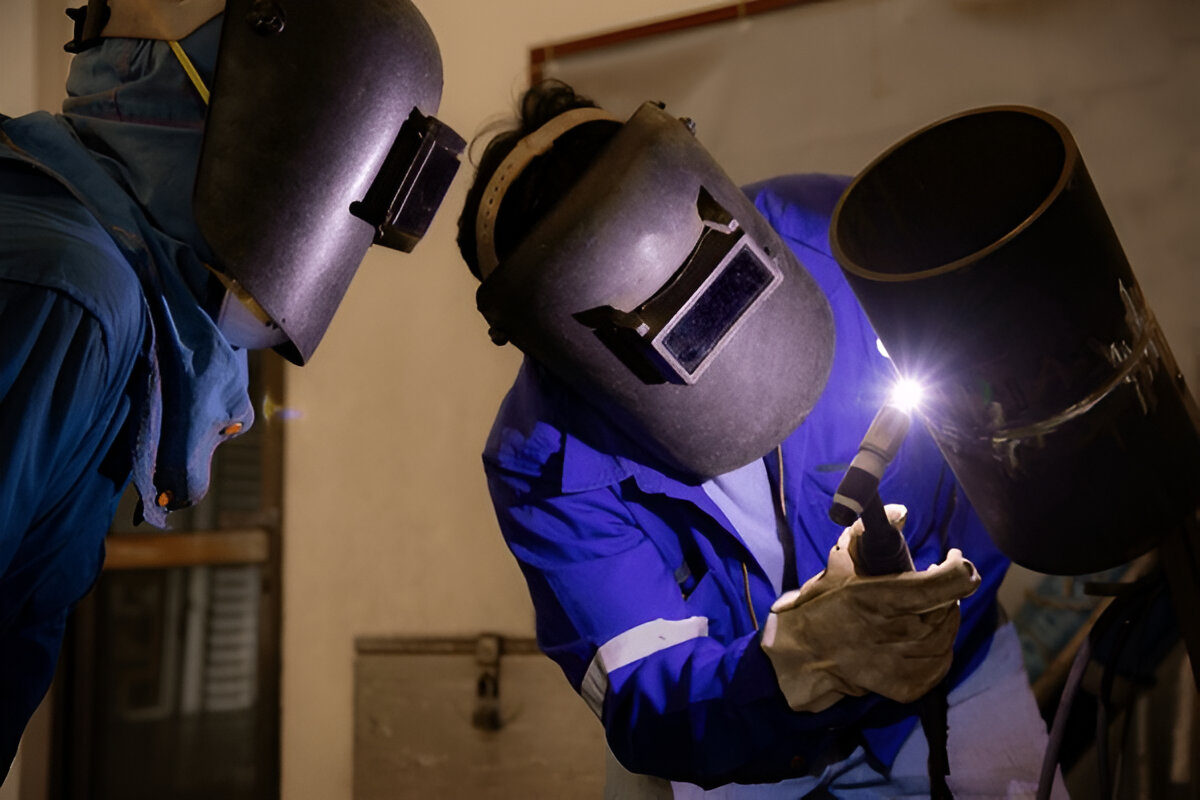

2. TIG Welding (Tungsten Inert Gas)

TIG welding, also known as Gas Tungsten Arc Welding (GTAW), is a precise and clean welding process where a non-consumable tungsten electrode is used to create the weld. The filler metal is manually added to the molten weld pool as needed, and the welding area is shielded by an inert gas like argon.

• Applications: TIG welding is ideal for high-precision applications where the appearance and quality of the weld are critical. It is commonly used in the aerospace, food processing, and medical industries, especially for welding thin-walled tubes and pipes.
• Advantages: TIG welding offers the ability to weld a variety of materials, including stainless steel, aluminum, and titanium. It produces clean, strong, and precise welds with minimal spatter.
• Limitations: TIG welding is slower than other welding methods and requires a high skill level, making it more suitable for small-scale or custom jobs.

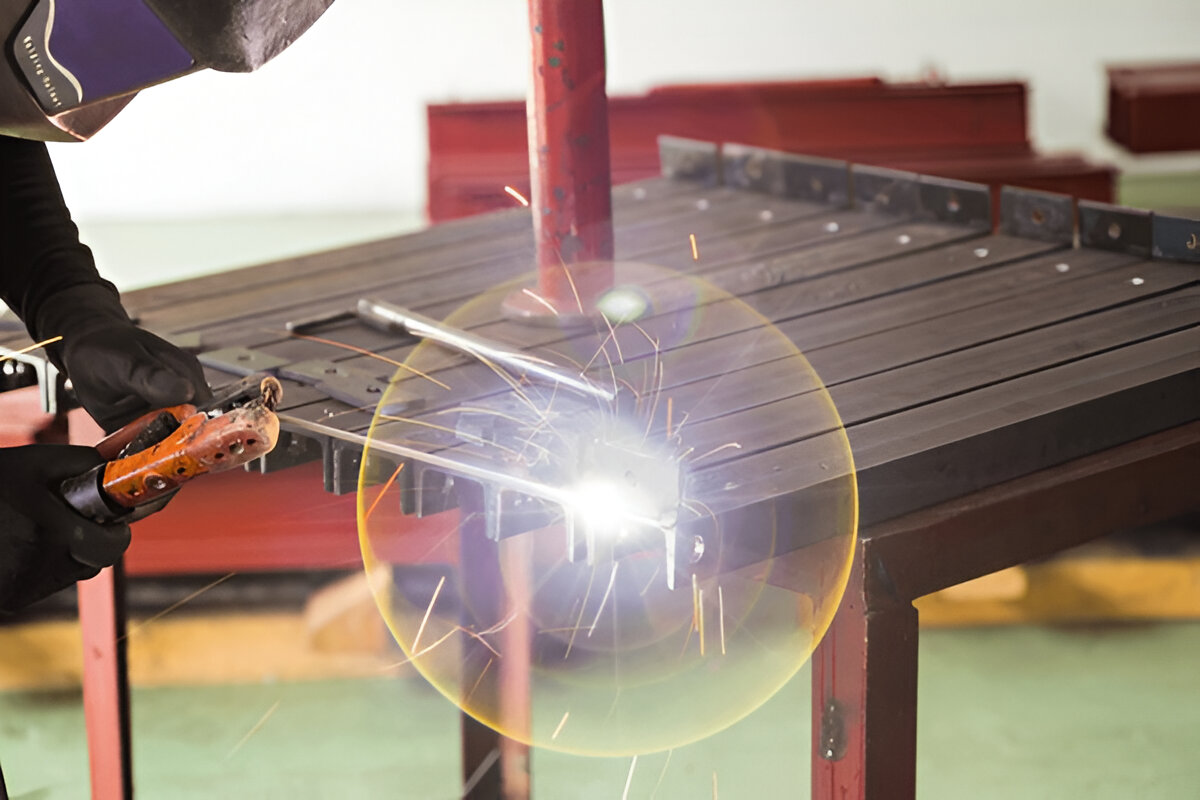

3. Stick Welding (Shielded Metal Arc Welding - SMAW)

Stick welding, or SMAW, is one of the oldest and most versatile welding techniques. It uses a consumable electrode coated in flux, which provides shielding from contaminants in the air. The process creates an arc between the electrode and the workpiece, melting both the electrode and the workpiece to form a strong bond.

• Applications: Stick welding is commonly used in construction, shipbuilding, and repair applications. It is highly effective in outdoor conditions where wind may blow away shielding gases.
• Advantages: Stick welding is cost-effective, versatile, and can be used on a wide range of materials and thicknesses. It is especially useful for heavy-duty welding tasks and for welding in less-than-ideal conditions, such as outdoor or humid environments.
• Limitations: While stick welding is robust, it is not as precise as MIG or TIG welding, and the process tends to leave more spatter, which requires additional clean-up.

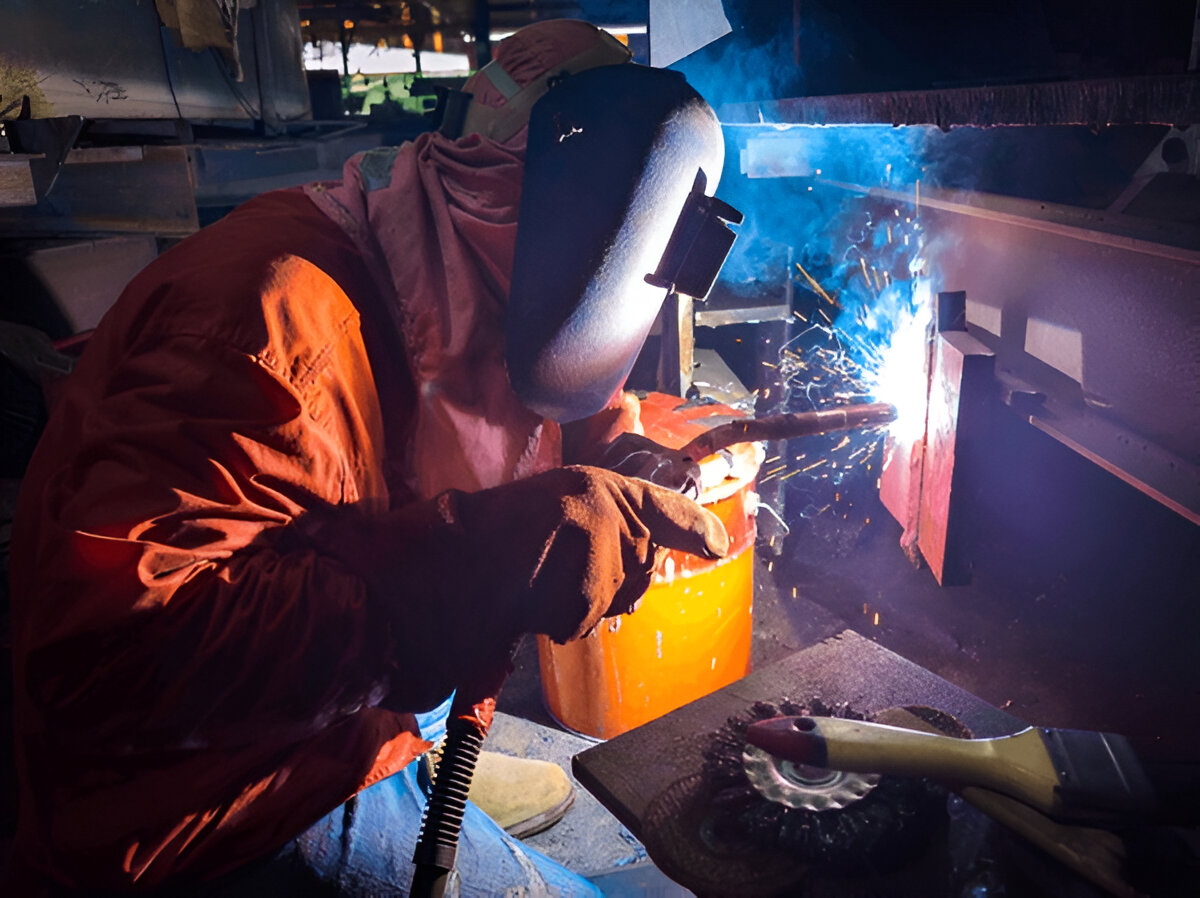

4. Flux-Cored Arc Welding (FCAW)

Flux-Cored Arc Welding is similar to MIG welding but uses a hollow wire filled with flux instead of a solid wire. This flux serves as the shielding agent and provides additional benefits, such as better protection against wind and the ability to weld thicker materials.

• Applications: FCAW is commonly used in construction, shipbuilding, and heavy equipment manufacturing. It is ideal for welding thick sections of steel and for jobs that require high deposition rates.
• Advantages: FCAW offers high productivity, deep penetration, and is more forgiving than MIG welding when it comes to working in less-than-ideal conditions. It is suitable for both indoor and outdoor applications.
• Limitations: The process produces more spatter than MIG welding and may require additional clean-up. Additionally, the quality of the weld may be affected when using the flux core in certain conditions.

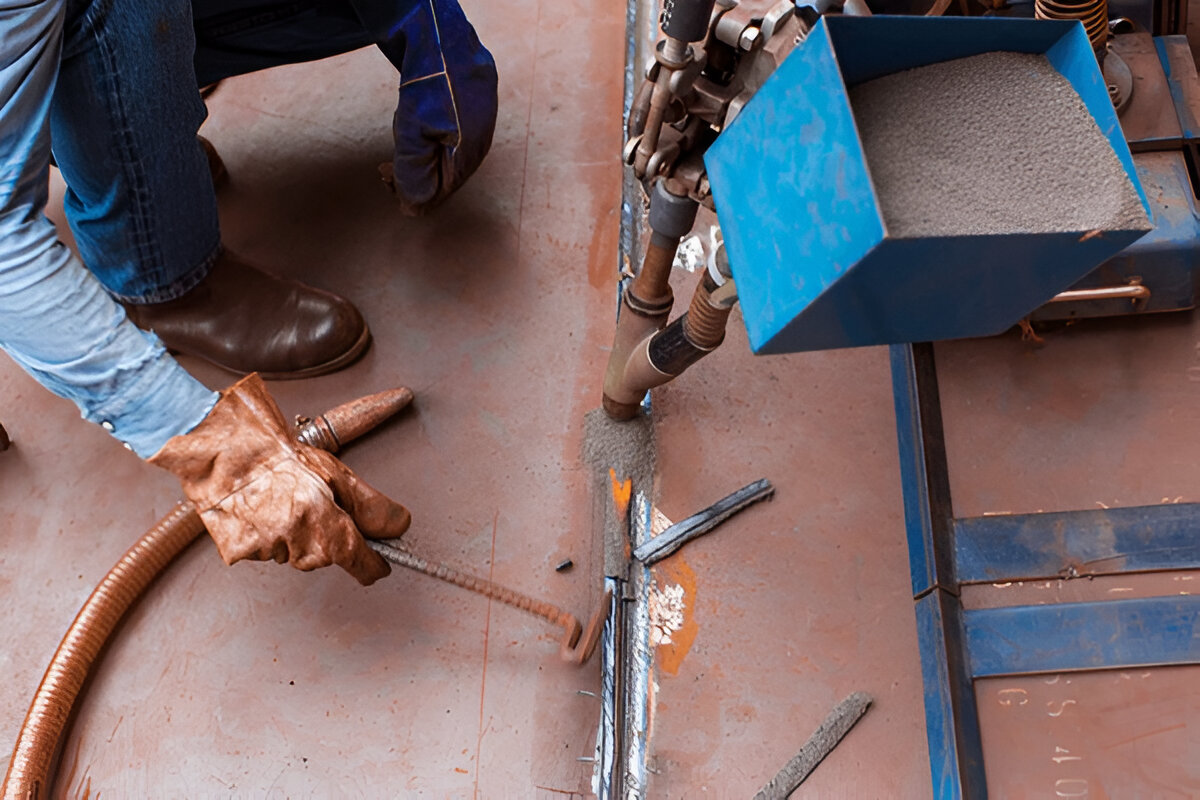

5. Submerged Arc Welding (SAW)

Submerged Arc Welding is a high-efficiency welding technique that involves creating an arc beneath a layer of flux. The flux helps to protect the weld pool and the electrode from contaminants in the air, resulting in deep penetration and high-quality welds.

• Applications: SAW is often used in heavy industrial applications such as the construction of large structures, pressure vessels, and pipelines.
• Advantages: Submerged Arc Welding is known for its ability to weld thick materials with high deposition rates. It produces high-quality, deep penetration welds and is often used for continuous welding in large production runs.
• Limitations: SAW is not suitable for all positions (it works best in a horizontal position) and is generally used for flat or horizontal welds.

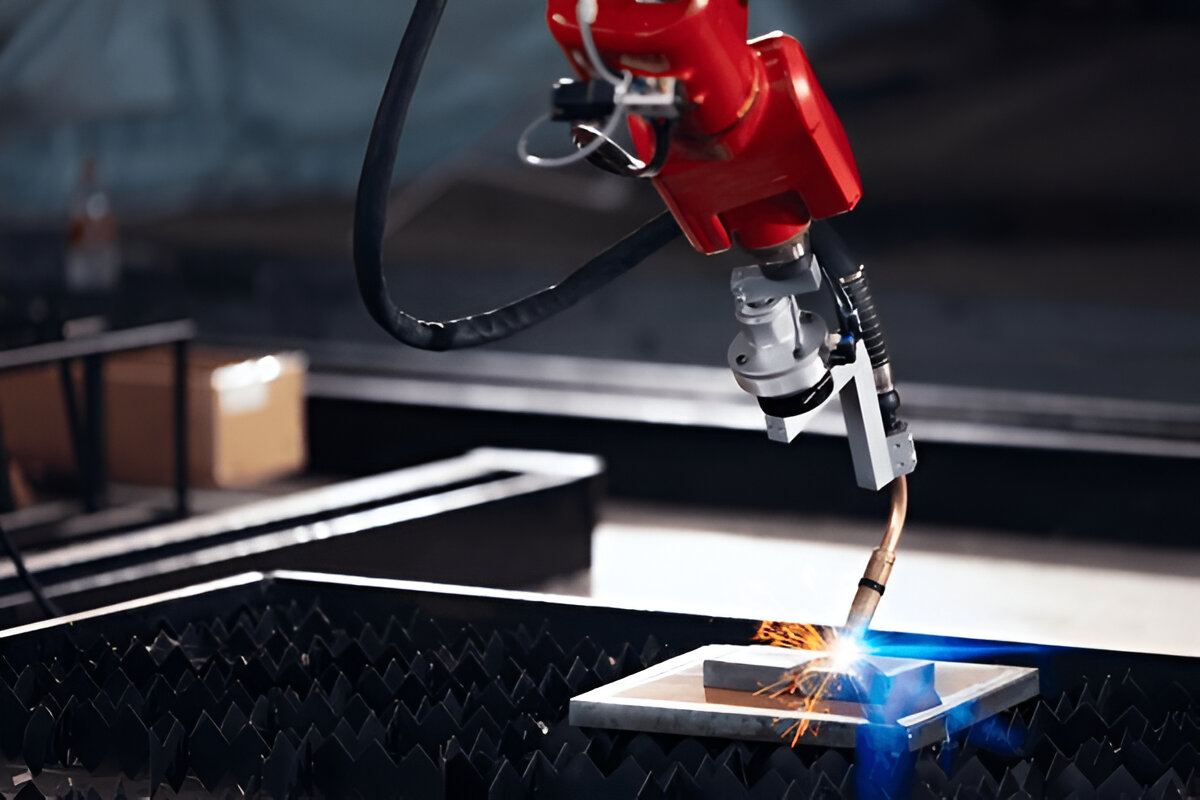

6. Laser Welding

Laser welding uses a high-powered laser beam to melt the metal at the joint, creating a precise and strong weld. The focused laser provides deep penetration with minimal heat input, which helps to minimize distortion and the need for post-weld treatments.

• Applications: Laser welding is used in high-precision industries such as automotive manufacturing, aerospace, and electronics.
• Advantages: It offers extremely precise control, minimal heat distortion, and the ability to weld complex shapes or fine joints. The high speed of the process also makes it ideal for automation.
• Limitations: Laser welding requires high equipment costs, and its use is limited to thinner materials or components that can be precisely aligned.

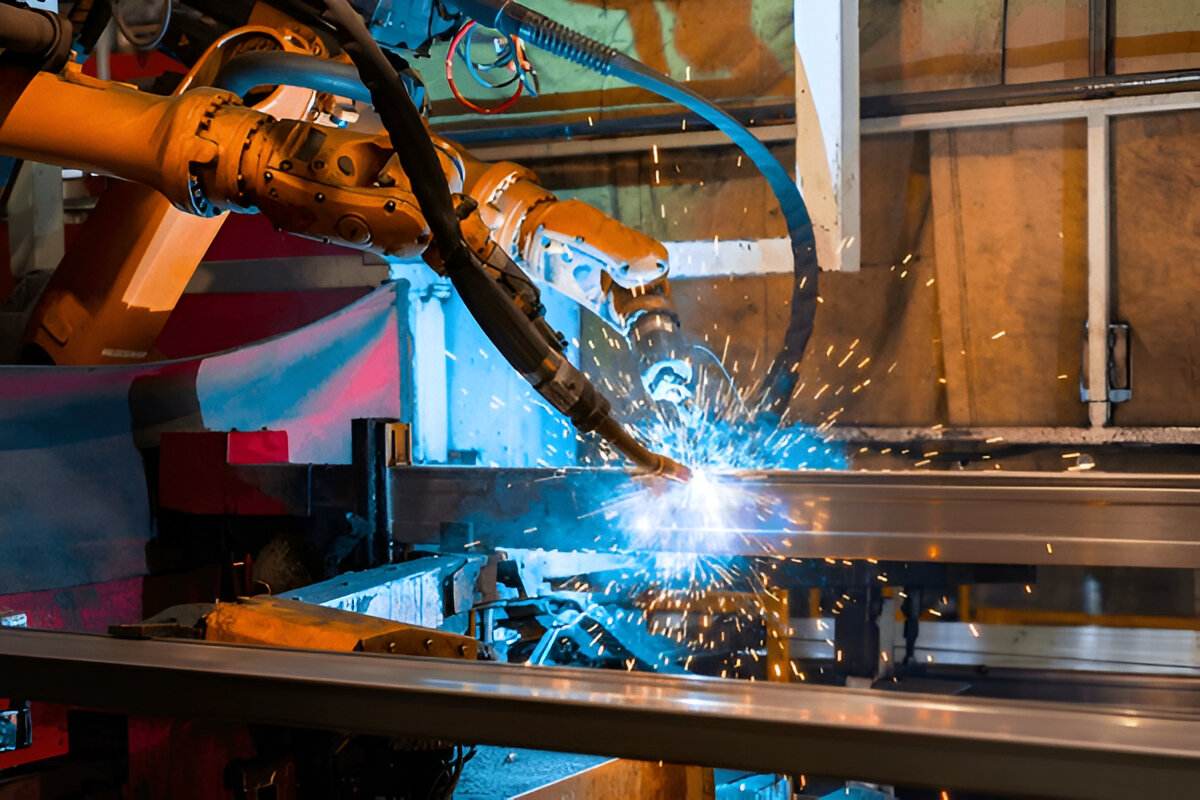

7. Electron Beam Welding (EBW)

Electron Beam Welding uses a focused beam of high-energy electrons to melt and join materials. The process occurs in a vacuum, which prevents contamination from the atmosphere.

• Applications: EBW is often used for applications requiring deep penetration and fine welds, such as in aerospace, nuclear industries, and precision machinery.
• Advantages: It provides high precision, minimal thermal distortion, and deep penetration with small heat-affected zones.
• Limitations: EBW requires a vacuum environment, which limits its use to certain applications. The equipment is also costly and requires specialized handling.

The Importance of Assembly in Manufacturing

Assembly refers to the process of fitting together individual components or subassemblies to create a complete product. While welding ensures that metal components are joined with strength and durability, assembly plays an equally important role in bringing the product together. It involves organizing, positioning, and joining parts, and in some cases, welding, fasteners, and adhesives are employed to ensure that everything fits together precisely.

Types of Assembly Processes

1. Manual Assembly: This is the most straightforward method of assembly, where workers manually assemble products or components using hand tools or machines. While manual assembly is labor-intensive, it is suitable for low-volume production and high-precision work.
2. Automated Assembly: In industries where large volumes of products are produced, automated assembly lines are used. These systems involve machines, robots, and other automated equipment to assemble components quickly and efficiently. The use of automation reduces human error and increases production speed.
3. Modular Assembly: This method involves assembling subassemblies or modules before bringing them together into the final product. Modular assembly is commonly used in industries like automotive manufacturing, where different components are assembled in parallel before final assembly.
4. Lean Assembly: Lean assembly focuses on minimizing waste while improving efficiency and productivity. This process streamlines the assembly line by eliminating unnecessary steps, reducing downtime, and optimizing labor utilization.

Applications of Welding and Assembly in Industry

Welding and assembly are applied across a wide variety of industries, including automotive, aerospace, construction, and manufacturing. Here are some examples of how these processes are utilized:

• Automotive Industry: Welding plays a key role in car manufacturing, as it ensures the strength and safety of critical components like the chassis, frame, and body panels. Automated assembly lines are used to efficiently assemble thousands of vehicles in a short period of time.
• Aerospace Industry: The aerospace industry requires precise, high-strength welds to create components like aircraft fuselages and engine parts. TIG welding, for instance, is often used to join lightweight metals like aluminum and titanium in aircraft manufacturing.
• Construction Industry: Welding is used extensively in the construction of bridges, buildings, and other structures. It ensures that the metal parts are securely joined, providing the necessary structural integrity.
• Heavy Machinery and Equipment: Many industrial machines, including cranes, bulldozers, and agricultural equipment, are built using a combination of welding and assembly. These machines often require specialized welding techniques to ensure their durability under tough conditions.
• Shipbuilding: Welding is essential in the construction of ships, as it is used to join large metal plates together. The assembly process involves the careful integration of various subassemblies into the final ship structure.

How Welding and Assembly Improve Durability and Strength

The strength and durability of welded and assembled metal components are a direct result of the techniques and materials used. High-quality welding creates bonds that are often stronger than the base material itself, ensuring the overall strength and integrity of the final product.

1. Strong Joints: Welding creates strong joints that can withstand high levels of stress and pressure, ensuring that the finished product remains intact even under challenging conditions.
2. Resistance to Corrosion: Welding techniques like TIG welding provide clean and smooth joints, which help prevent corrosion. In addition, the selection of materials plays a significant role in ensuring the longevity of the metal parts.
3. Customization: Welding and assembly can be used to create customized metal components to meet specific project requirements, whether it’s for aesthetic purposes or functionality.
4. Cost-Effective: By utilizing the right welding techniques and assembling the components efficiently, manufacturers can reduce material waste and optimize labor costs, making the entire process more cost-effective.

Challenges in Welding and Assembly

While welding and assembly processes are essential to modern manufacturing, there are several challenges that companies must overcome to ensure the highest quality and precision.

1. Material Compatibility: Not all materials are compatible with every welding technique. Some materials, such as high-carbon steels, require special considerations to prevent cracking or distortion during welding.
2. Heat-Affected Zones: The heat generated during welding can alter the structure of the metal around the weld, creating what is known as the heat-affected zone (HAZ). This can reduce the strength of the material and requires careful management during the welding process.
3. Residual Stresses: Welding and assembly can introduce residual stresses into the material, which can lead to warping, cracking, or fatigue over time. Techniques like post-weld heat treatment can be used to mitigate these stresses.
4. Quality Control: Ensuring that each weld is flawless and that components are accurately assembled requires strict quality control measures. Without these measures, the final product may suffer from defects that compromise its durability.
5. Cost of Precision: While highly precise welding and assembly processes ensure better strength and durability, they can also increase production costs. However, the benefits of high-quality finished products typically outweigh the increased cost.

Why Choose Zeometrix for Welding and Assembly

At Zeometrix, we understand the importance of welding and assembly in creating strong, durable metal connections that can stand the test of time. We offer comprehensive solutions for metal fabrication and component manufacturing, with a focus on precision and quality.

Our engineering team works closely with a network of carefully vetted manufacturers, ensuring that each welding and assembly process is carried out with the highest standards of quality. Whether you need sheet metal fabrication, CNC machining, or custom injection molding, we leverage advanced techniques to meet the unique needs of your project. We are committed to providing durable, high-performance solutions tailored to your specifications.

By partnering with Zeometrix, you gain access to a complete range of manufacturing processes and expertise. From initial design to final assembly, we ensure that every component is crafted with precision and built to last. With our extensive production capacity and diverse manufacturing facilities, we can scale your project to meet the demands of any industry, delivering both exceptional quality and operational efficiency.

Conclusion

Welding and assembly are indispensable processes that create the foundation for strong, durable metal connections across various industries. By employing advanced welding techniques and optimizing the assembly process, manufacturers can produce high-quality, long-lasting products. As technology evolves, the capabilities of welding and assembly continue to grow, providing industries with the tools they need to build reliable, efficient, and cost-effective products.

At Zeometrix, we are dedicated to helping businesses turn their concepts into reality with precision manufacturing processes that ensure the highest standards of quality and durability. Whether you are working on prototypes or large-scale production, our team is here to provide you with end-to-end manufacturing solutions that meet your exact needs.
